dio_request_inspector 0.0.9

dio_request_inspector: ^0.0.9 copied to clipboard

Dio Requests Inspector Package

Request inspector package for Flutter, Allows checking HTTP connections with UI inspector.

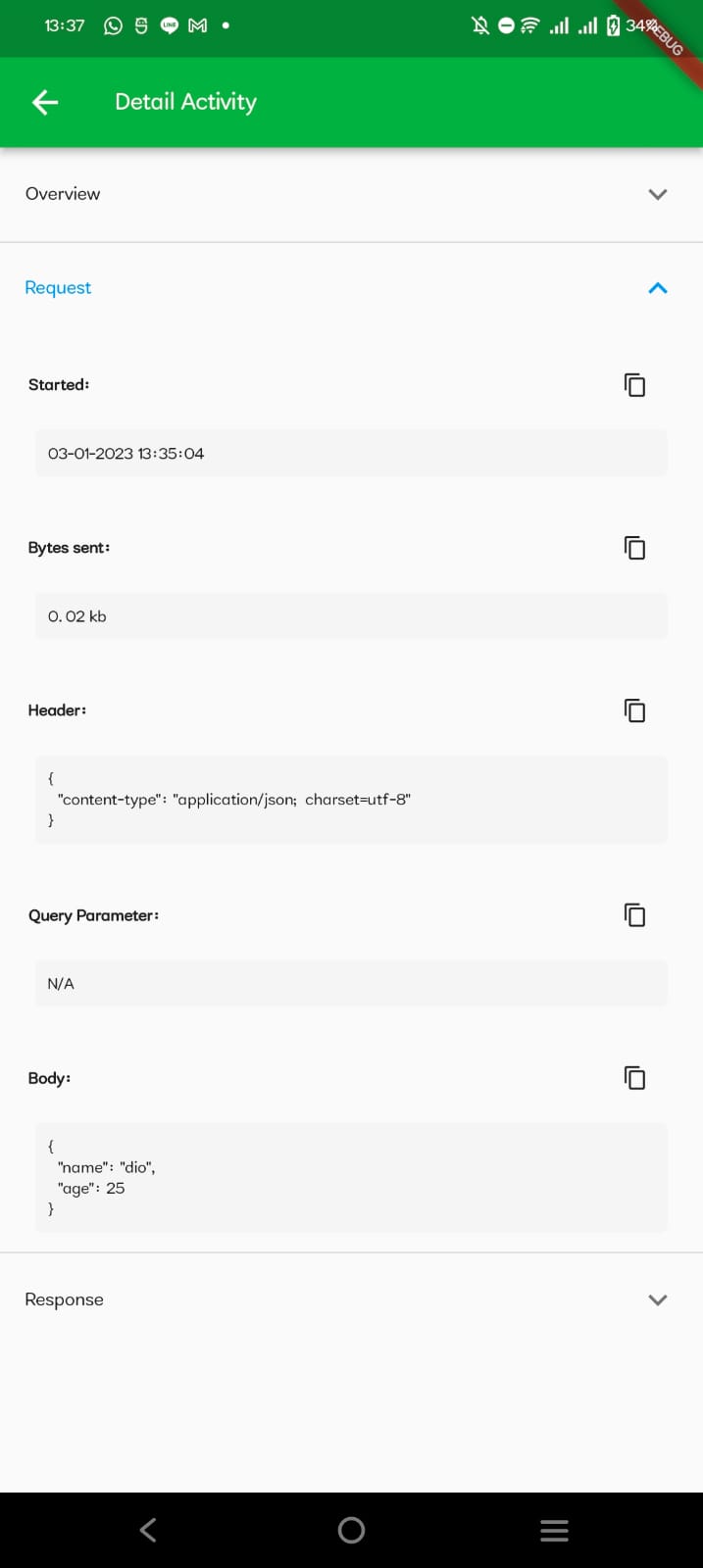

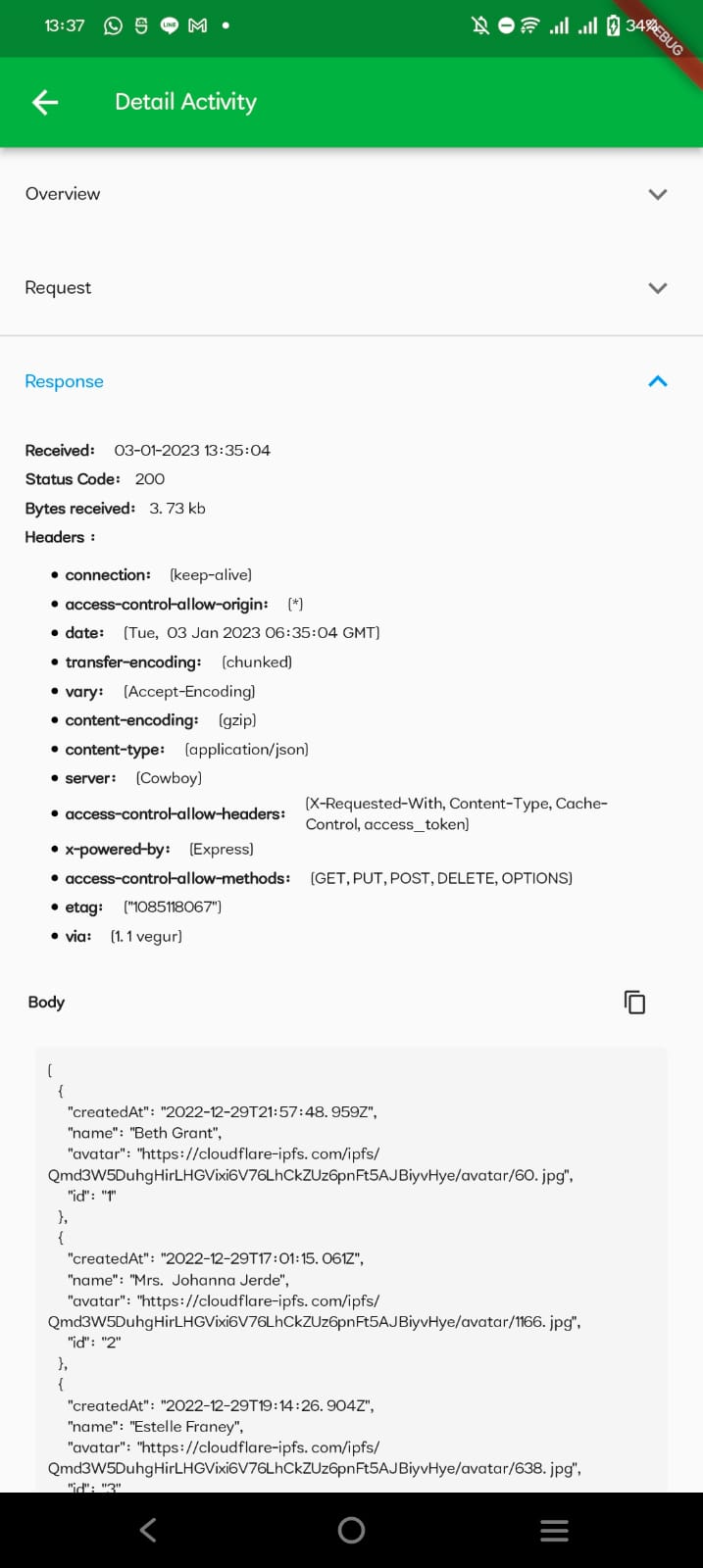

Some screenshots #

How to use #

1. Create DioRequestInspector instance

DioRequestInspector dioRequestInspector = DioRequestInspector(isDebugMode: true);

2. Add DioRequestInterceptor to your Dio instance

_dio.interceptors.add(dioRequestInspector.getDioRequestInterceptor());

3. Wrap your MaterialApp with DioRequestInspectorMain

DioRequestInspectorMain(inspector: dioRequestInspector, child: MyApp())

4. add NavigatorKey to your MaterialApp for direct to Inspector UI

navigatorKey: dioRequestInspector.navigatorKey,

Example #

import 'package:dio_request_inspector/dio_request_inspector.dart';
import 'package:dio_request_inspector/presentation/main/page/main_page.dart';
import 'package:dio/dio.dart';
import 'package:flutter/material.dart';

DioRequestInspector dioRequestInspector =
DioRequestInspector(isDebugMode: true);

void main() {
  WidgetsFlutterBinding.ensureInitialized();
  runApp(DioRequestInspectorMain(
      inspector: dioRequestInspector, child: const MyApp()));
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Dio Request Inspector',
      navigatorKey: dioRequestInspector.getNavigatorKey,
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: const MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({Key? key}) : super(key: key);

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late Dio _dio;

  @override
  void initState() {
    _dio = Dio();
    _dio.interceptors.add(dioRequestInspector.getDioRequestInterceptor());
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text('Dio Request Inspector Example'),
        backgroundColor: Colors.purple.withOpacity(0.6),
      ),
      body: Container(
        padding: const EdgeInsets.symmetric(horizontal: 16),
        width: double.infinity,
        height: double.infinity,
        child: ListView(
          children: [
            const SizedBox(
              height: 16,
            ),
            ElevatedButton(
              onPressed: _getRequest,
              style: ElevatedButton.styleFrom(
                backgroundColor: Colors.purple.withOpacity(0.6),
              ),
              child: const Text("GET Request"),
            ),
            const SizedBox(
              height: 16,
            ),
            ElevatedButton(
              onPressed: _getImageRequest,
              style: ElevatedButton.styleFrom(
                backgroundColor: Colors.purple.withOpacity(0.6),
              ),
              child: const Text("GET Image Request"),
            ),
            const SizedBox(
              height: 16,
            ),
            ElevatedButton(
              onPressed: _postRequest,
              style: ElevatedButton.styleFrom(
                backgroundColor: Colors.purple.withOpacity(0.6),
              ),
              child: const Text("POST Request"),
            ),
            const SizedBox(
              height: 16,
            ),
            ElevatedButton(
              onPressed: _errorRequest,
              style: ElevatedButton.styleFrom(
                backgroundColor: Colors.purple.withOpacity(0.6),
              ),
              child: const Text("Error Request"),
            ),
            const SizedBox(
              height: 16,
            ),
            ElevatedButton(
              onPressed: _seeInspector,
              style: ElevatedButton.styleFrom(
                backgroundColor: Colors.purple.withOpacity(0.6),
              ),
              child: const Text("See Inspector"),
            ),
          ],
        ),
      ),
    );
  }

  void _getRequest() {
    _dio.get<void>("https://63aea217ceaabafcf17f16b1.mockapi.io/get");
  }

  void _postRequest() {
    _dio.post("https://httpbin.org/post", data: {"name": "dio", "age": 25});
  }

  void _errorRequest() {
    _dio.get<void>("https://httpbin.org/status/404");
  }

  void _seeInspector() {
    dioRequestInspector.navigateToDetail();
  }

  void _getImageRequest() {
    _dio.get<void>("https://httpbin.org/image/png");
  }
}

Note #

• set isDebugMode to false if your app is in production
• tap Long press on your screen to show DioRequestInspector UI
